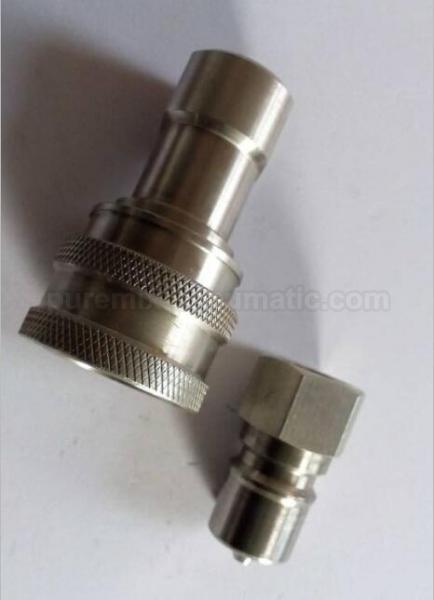

KZBSS Series Hydraulic Quick Couplings(Stainless Steel)
Specifications
Body size (in)
1/4 3/8 1/2 3/4 1
Rated Pressure (Bar)
150 100 100 100 75
Material: Stainless Steel
Standard seal material: NBR (other material is available on request)
Temperature Range (Std seals): -20°C to +80°C





Part No. Thread size BSPP A Overall Length (mm.) B Exposed Length (mm.) C
Hex Size (mm.)		 D
Largest Diameter (mm.)		 Part No. Thread size NPT A Overall Length (in.) B Exposed Length (in.) C
Hex Size (in.)		 D
Largest Diameter (in.)
KZBSS-01PF G1/8 41.0 10.0 14.0 17.0 KZBSS-N01PF NPT1/8 1.61 0.41 0.56 0.65
KZBSS-02PF G1/4 35.0 17.0 19.0 22.0 KZBSS-N02PF NPT1/4 1.39 0.65 0.75 0.87
KZBSS-03PF G3/8 38.0 14.0 22.0 26.0 KZBSS-N03PF NPT3/8 1.50 0.54 0.88 1.01
KZBSS-04PF G1/2 44.0 18.0 28.0 33.0 KZBSS-N04PF NPT1/2 1.75 0.69 1.12 1.30
KZBSS-06PF G3/4 55.0 20.0 35.0 40.0 KZBSS-N06PF NPT3/4 2.16 0.79 1.38 1.59
KZBSS-08PF G1 74.0 25.0 41.0 48.0 KZBSS-N08PF NPT1 2.91 0.99 1.62 1.88
KZBSS-10PF G1 1/4 76.0 25.0 54.0 59.0 KZBSS-N10PF NPT1 1/4 2.99 0.99 2.13 2.32
KZBSS-12PF G1 1/2 82.0 26.0 63.0 69.0 KZBSS-N12PF NPT1 1/2 3.22 1.02 2.48 2.72
KZBSS-16PF G2 88.0 28.0 77.0 84.0 KZBSS-N16PF NPT2 3.46 1.10 3.03 3.30





Part No. Thread size BSPP E
Overall Length (mm.)		 F
Hex
Size (mm.)		 G
Largest Diameter (mm.)		 Part No. Thread size NPT E
Overall Length (in.)		 F
Hex
Size
(in.)		 G
Largest Diameter (in.)
KZBSS-01SF G1/8 48.0 17.0 24.0 KZBSS-N01SF NPT1/8 1.90 0.68 0.96
KZBSS-02SF G1/4 57.0 21.0 29.0 KZBSS-N02SF NPT1/4 2.26 0.81 1.14
KZBSS-03SF G3/8 63.0 22.0 36.0 KZBSS-N03SF NPT3/8 2.49 0.88 1.40
KZBSS-04SF G1/2 73.0 28.0 45.0 KZBSS-N04SF NPT1/2 2.87 1.12 1.77
KZBSS-06SF G3/4 90.0 33.0 54.0 KZBSS-N06SF NPT3/4 3.56 1.31 2.14
KZBSS-08SF G1 106.0 41.0 64.0 KZBSS-N08SF NPT1 4.18 1.62 2.52
KZBSS-10SF G1 1/4 115.0 54.0 79.0 KZBSS-N10SF NPT1 1/4 4.53 2.13 3.11
KZBSS-12SF G1 1/2 124.0 63.0 79.0 KZBSS-N12SF NPT1 1/2 4.88 2.48 3.11
KZBSS-16SF G2 132.0 77.0 109.0 KZBSS-N16SF NPT2 5.20 3.03 4.29
