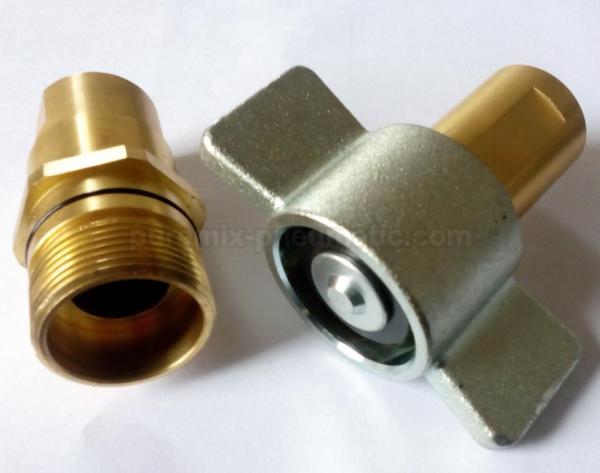

Hydraulic quick coupling QKTF
Hydraulic quick coupling » QKTF
Click to enlarge

Pictures available of Hydraulic quick coupling :

QKTF

Hydraulic quick coupling



Applications





QKTF Series,thread-to-connect couplings can be used in a wide range of industrial applications where heavy-duty couplings are required that can be connected under pressure,with little or no spillages .QKTF is ideal for connecting hydraulic lines on oil field equipment like power tongs,swivels and mobile drilling rigs.It is also widely used on dump trailers to connect the tractor to wet-line hydraulic systems.
Other uses include: submersible pumps,engine test stands,and many other applications where high pressure,heavy duty couplings are required.

Enquiry Now

Hydraulic quick coupling Details



Body size (in) 3/4 1 1 1/4
Rated Pressure (Bar) 200 200 200
Material: Carbon steel & Brass
Standard seal material: NBR (other material is available on request)
Temperature Range (Std seals): -20°C to +80°C



Part No. Thread Size BSPP Body size Dimensions (in.)
Overall Length		 Dimensions (in.)
Wrench Flats		 Dimensions (in.)
Wing Nut
      A B C
QKTF 06-N04SF NPT1/2 3/4 3.22 1.16 4.06
QKTF 06-N06SF NPT3/4 3/4 3.22 1.16 4.06
QKTF 08-N08SF NPT1 1 3.87 1.43 4.38
QKTF 10-N10SF NPT1 1/4 1 1/4 4.16 1.78 5.20
Contact us for BSPP port availability



Part No. Thread Size BSPP Body size Dimensions (in.) Overall Length Dimensions (in.) Wrench Flats Dimensions (in.) Wing Nut
      A B C
QKTF 06-N04HF NPT1/2 3/4 3.22 1.16 1.75
QKTF 06-N06HF NPT3/4 3/4 3.22 1.16 1.75
QKTF 08-N08HF NPT1 1 3.87 1.43 2.13
QKTF 10-N10HF NPT1 1/4 1 1/4 4.16 1.78 2.50
Contact us for BSPP port availability
Part No. Thread Size BSPP Body size Dimensions (in.) Overall Length Dimensions (in.) Wrench Flats Dimensions (in.) Wing Nut
      A B C
QKTF 06-N04PF NPT1/2 3/4 3.11 1.62 1.18
QKTF 06-N06PF NPT3/4 3/4 3.11 1.62 1.18
QKTF 08-N08PF NPT1 1 3.55 1.88 1.56
QKTF 10-N10PF NPT1 1/4 1 1/4 3.71 2.13 1.88
Contact us for BSPP port availability
